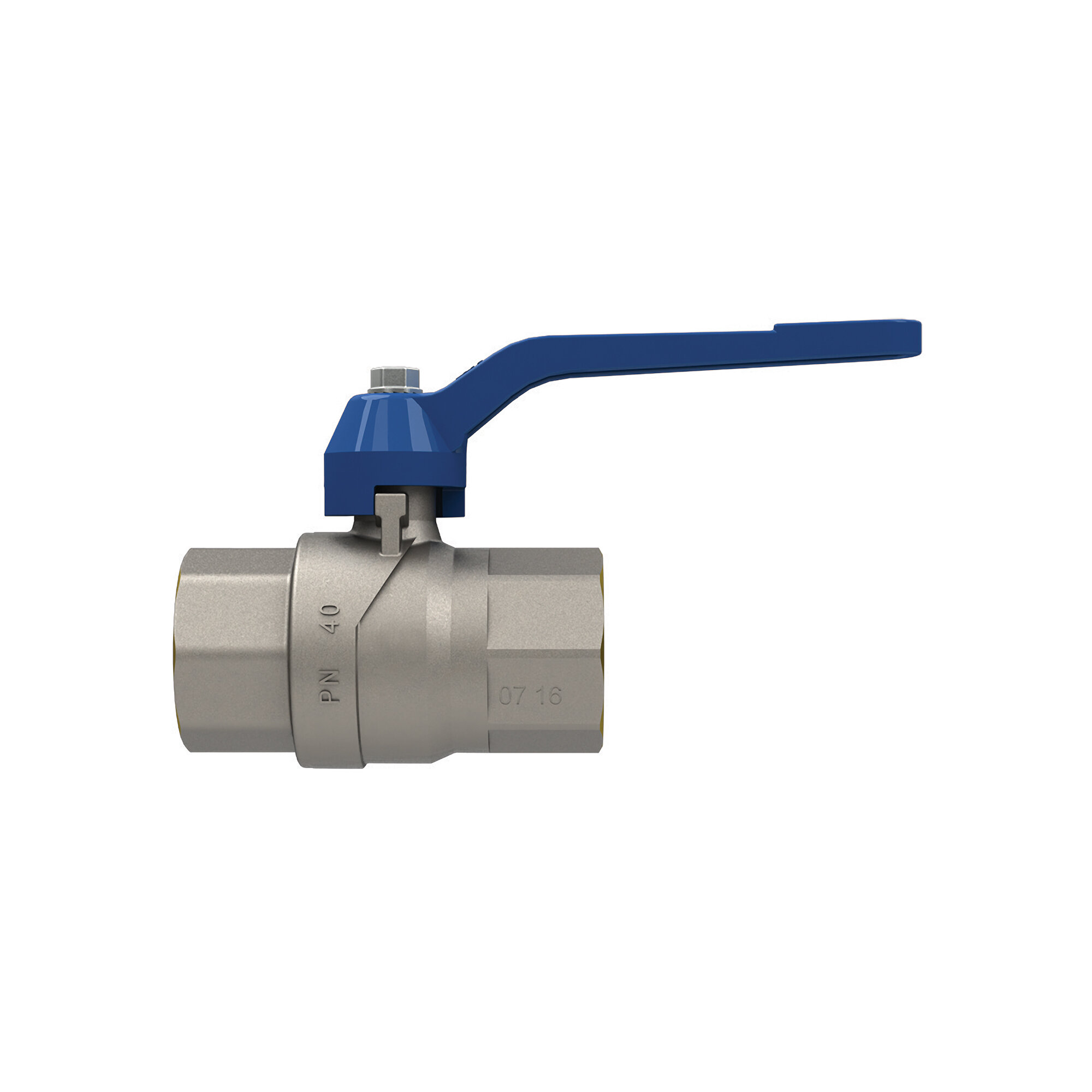

Progress Female - Female straight lever handle
Progress Valve Female - Female straight lever handle.
To be connected upstream and/or downstream of magnetic dirt separator code 09089506 and 09089508.
To be connected upstream and/or downstream of magnetic dirt separator code 09089506 and 09089508.
Construction
- Brass body UNI EN 12165 CW617N - DW
- Brass sleeve UNI EN 12165 CW617N - DW
- Ball brass UNI EN 12165 CW617N - DW, UNI EN 12164 CW617N - DW
- Ball gaskets virgin P.T.F.E.
- Rod brass UNI EN 12164 CW617N - DW
- O-Ring upper seal VITON 70 Sh A (ASTM D2240)
- O-Ring lower seal EPDM Peroxide 70 Sh A (ASTM D2240)
- Painted die-cast aluminium handle
- Screw galvanised steel
- Brass body UNI EN 12165 CW617N - DW
- Brass sleeve UNI EN 12165 CW617N - DW
- Ball brass UNI EN 12165 CW617N - DW, UNI EN 12164 CW617N - DW
- Ball gaskets virgin P.T.F.E.
- Rod brass UNI EN 12164 CW617N - DW
- O-Ring upper seal VITON 70 Sh A (ASTM D2240)
- O-Ring lower seal EPDM Peroxide 70 Sh A (ASTM D2240)
- Painted die-cast aluminium handle
- Screw galvanised steel
Valves must be used in fully open or closed position.
The CW617N-DW brass, Teflon (P.T.F.E.), and EPDM Peroxide O-Rings in contact with the fluid comply with D.M. 174 (of 06/04/2004).
100% tested product.
| Model | PN | Q.ty per pack. | Code |
|---|---|---|---|
Model 1" F-F | PN 30 bar | Q.ty per pack. 1 pcs | Code 80001100 |
Model 1"1/4 F-F | PN 25 bar | Q.ty per pack. 1 pcs | Code 80001114 |
