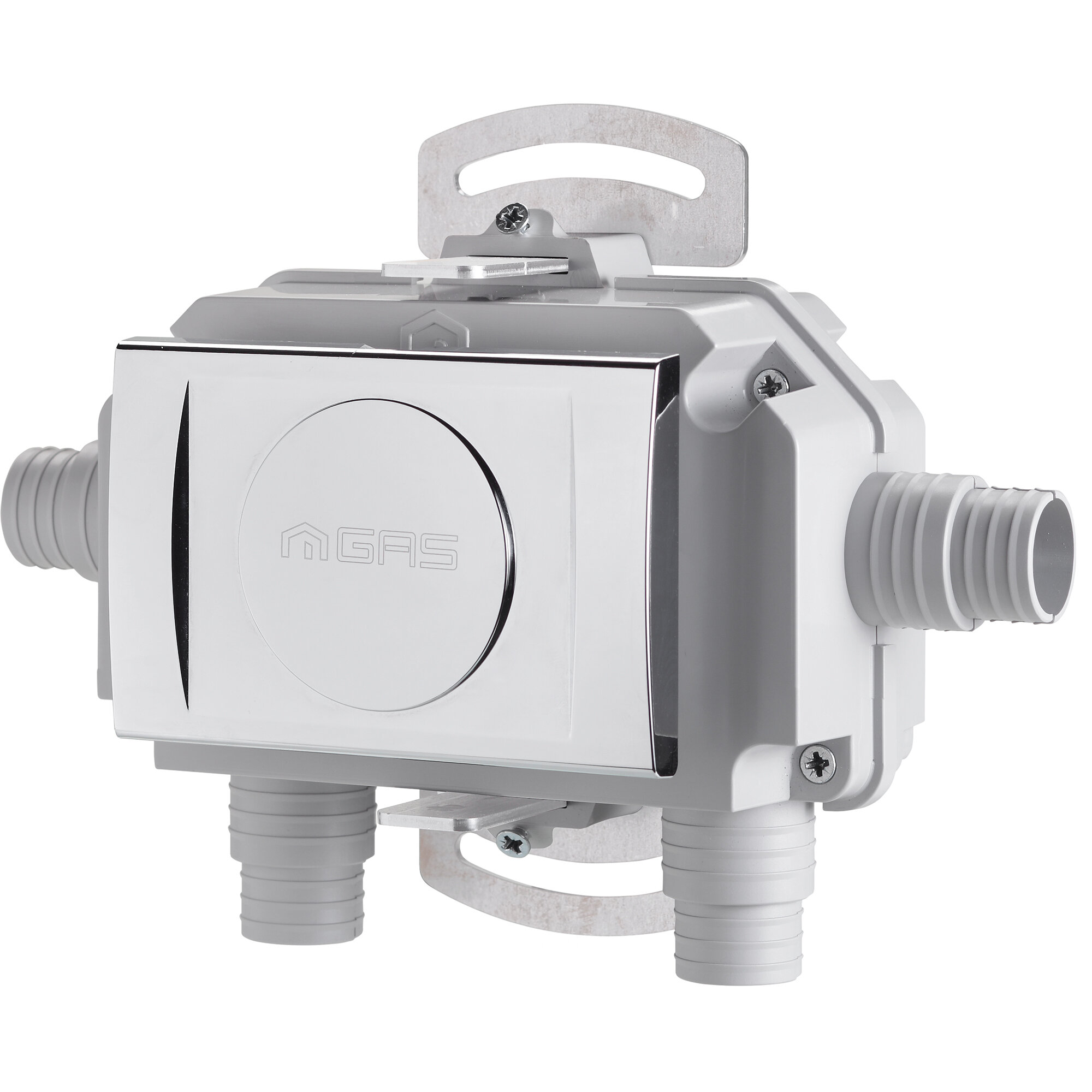

Gaslock, built-in ball valve for gas with hidden knob.

Suitable for shutting off methane gas and LPG as per the specifications of standard UNI 7129-1.
Valve certified in accordance with standard UNI EN 331 with CE marking.

Applications
- Hob supply shut-off
- Gas boiler or cylinder supply shut-off
- As a main gas shut-off valve in an easily accessible position

Technical data
- Operating pressure: MOP 5
- Operating temperature: - 20 °C ÷ 60 °C

Construction
- Valve body in UNI EN 12165 CW617N sandblasted nickel-plated brass
- Grey ABS lower shell
- Upper shell in grey ABS
- Shock-proof PS bracket
- Knob in shockproof yellow PS
- ABS door (chrome-plated as standard)
- Fixing and adjusting brackets in DD11 EN 10111 steel

The valve must be used in the completely open or completely closed position.
Opening and closure occurs by turning the knob by 90°.
