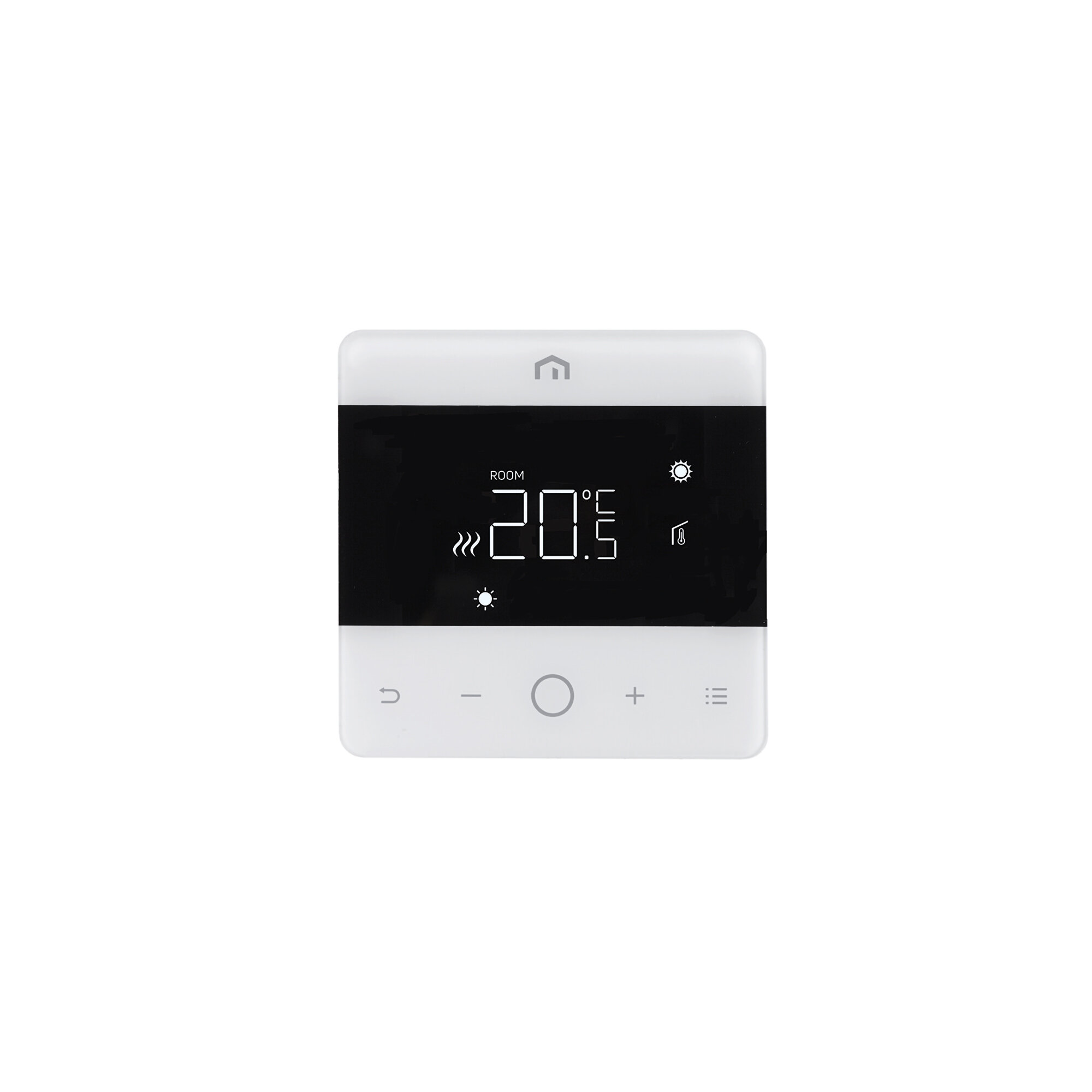

Unisenza Digital InWall thermostat

Download HD image 02019004

Unisenza Digital InWall thermostat

Simple digital thermostat for recessed mounting in a wide range of mounting boxes.
Intuitive display with easy-to-understand icons for modes and status.
Ultra flat design with only 17 mm depth.

Functions
- Heating
- Cooling
- Selectable programme options (Comfort, Eco, Program, Manual)
- Switch from Comfort to Eco mode or from Heating to Cooling mode (via Wi-Fi thermostat or via Wiring Centre)
- Open window
- External sensor can be used for remote air, floor or limit functions

Technical data
- Dimensions: 85x85x17 (30 recessed) mm
- Setting range: +5÷+30°C
- Supply voltage: 230 Vac, 50/60 Hz
- Power consumption: 3 W
- Capacity of the contacts: 2 (1) A 230 Vac (not voltage free)
- Type of automatic action: 1
- Construction: Class II
- Protection rating: IP30
- Operating temperature: 0÷40°C
- Operating humidity: 20÷90% RH non condensing
- Storage temperature: -20÷60°C
Model Q.ty per pack. Code
Model Digital thermostat, 230V
Q.ty per pack. 1 pcs
Code 02019004
