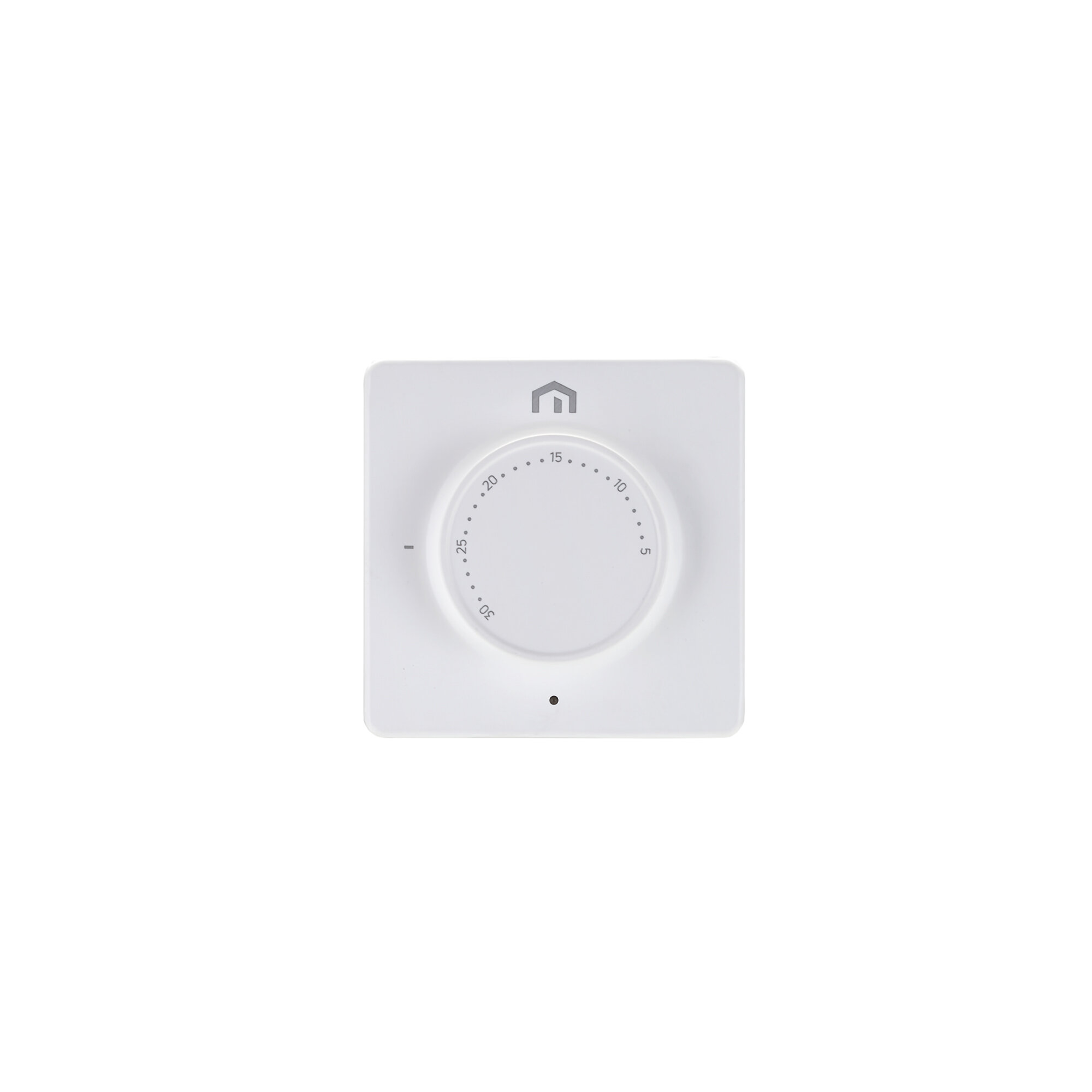

Unisenza Electronic dial OnWall thermostat

Download HD image 02019000

Unisenza Electronic dial OnWall thermostat

Simple dial thermostat for easy-to -understand temperature control.
On-wall mounting with dual LED to display the system status (heating=red, cooling=blue).

Functions
- Heating
- Cooling
- Switch from Comfort to Eco mode or from Heating to Cooling mode (via Wi-Fi thermostat or via Wiring Centre)

Technical data
- Dimensions: 85x85x30 mm
- Setting range: +5÷+30°C
- Supply voltage: 230 Vac, 50/60 Hz
- Power consumption: 3 W
- Capacity of the contacts: 2 (1) A 230 Vac (not voltage free)
- Type of automatic action: 1
- Construction: Class II
- Protection rating: IP30
- Operating temperature: 0÷40°C
- Operating humidity: 20÷90% RH non condensing
- Storage temperature: -20÷60°C
Model Q.ty per pack. Code
Model Electronic dial thermostat, 230V
Q.ty per pack. 1 pcs
Code 02019000
