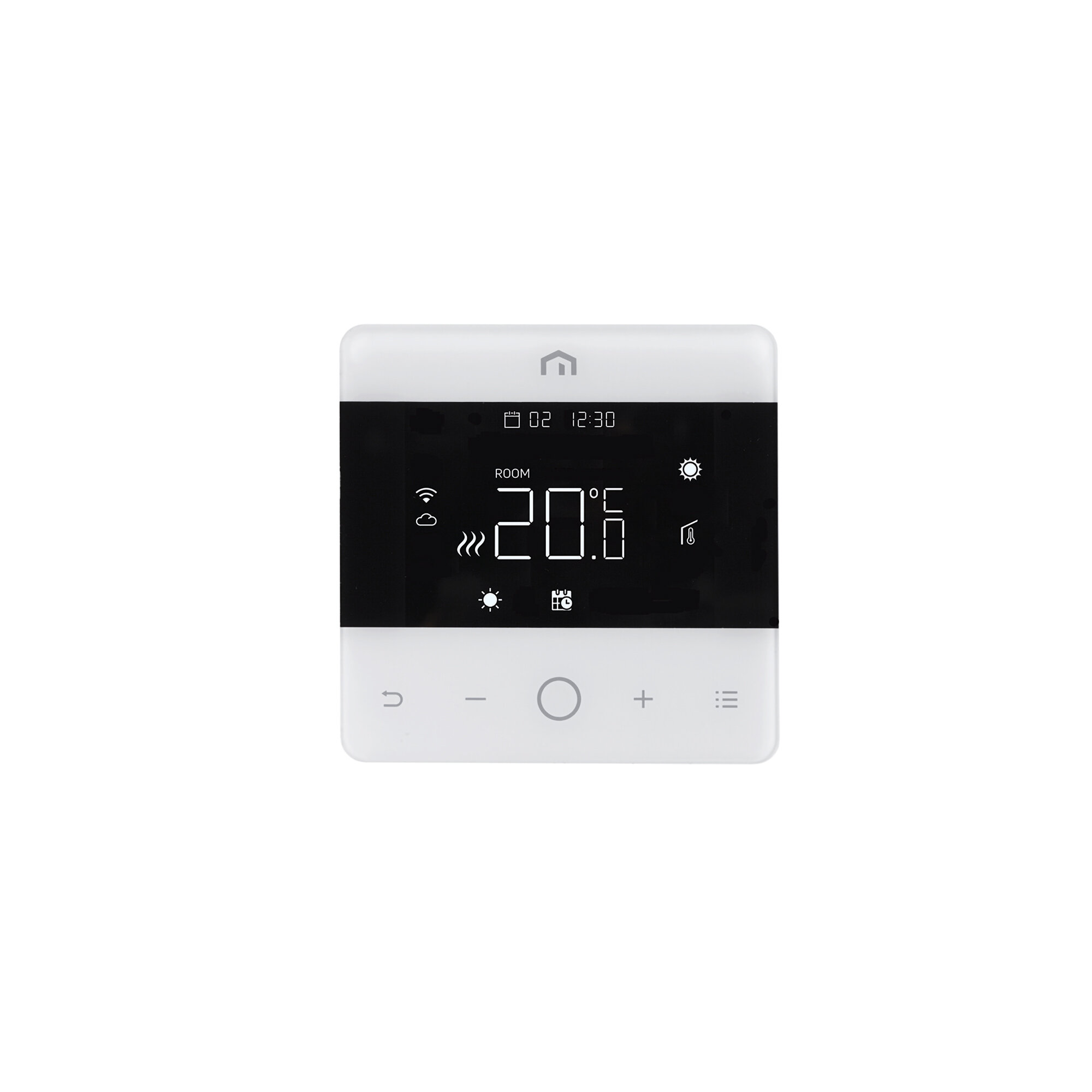

Unisenza Wi-Fi InWall thermostat

Download HD image 02019002

Unisenza Wi-Fi InWall thermostat

Digital thermostat with Wi-Fi connection for plug&play App control (Unisenza App).
Can be used to control your comfort on the go using geo location within the App. Heating reacts to the end users movements for maximum energy efficiency.
Fully programmable time/temperature settings to tailor the system to the users behaviour.
Thermostat in every room for individual time control or positioned centrally to control the dial or digital thermostats.
Ultra-flat design with only 17 mm depth.

Compatible with Amazon Echo and Google Assistant.

Functions
- Heating
- Cooling
- Selectable programme options (Comfort, Eco, Program, Manual)
- Clock thermostat with weekly programme also as central control for time control of dial and digital thermostats
- Switch from Heating to Cooling mode (via Wiring Centre)
- Open window
- External sensor can be used for remote air, floor or limit functions
- Management through Unisenza App

Technical data
- Dimensions: 85x85x17 (30 recessed) mm
- Setting range: +5÷+30°C
- Supply voltage: 230 Vac, 50/60 Hz
- Power consumption: 3 W
- Capacity of the contacts: 2 (1) A 230 Vac (not voltage free)
- Type of automatic action: 1
- Construction: Class II
- Protection rating: IP30
- Operating temperature: 0÷40°C
- Operating humidity: 20÷90% RH non condensing
- Storage temperature: -20÷60°C
Model Q.ty per pack. Code
Model Wi-Fi thermostat, 230V
Q.ty per pack. 1 pcs
Code 02019002
