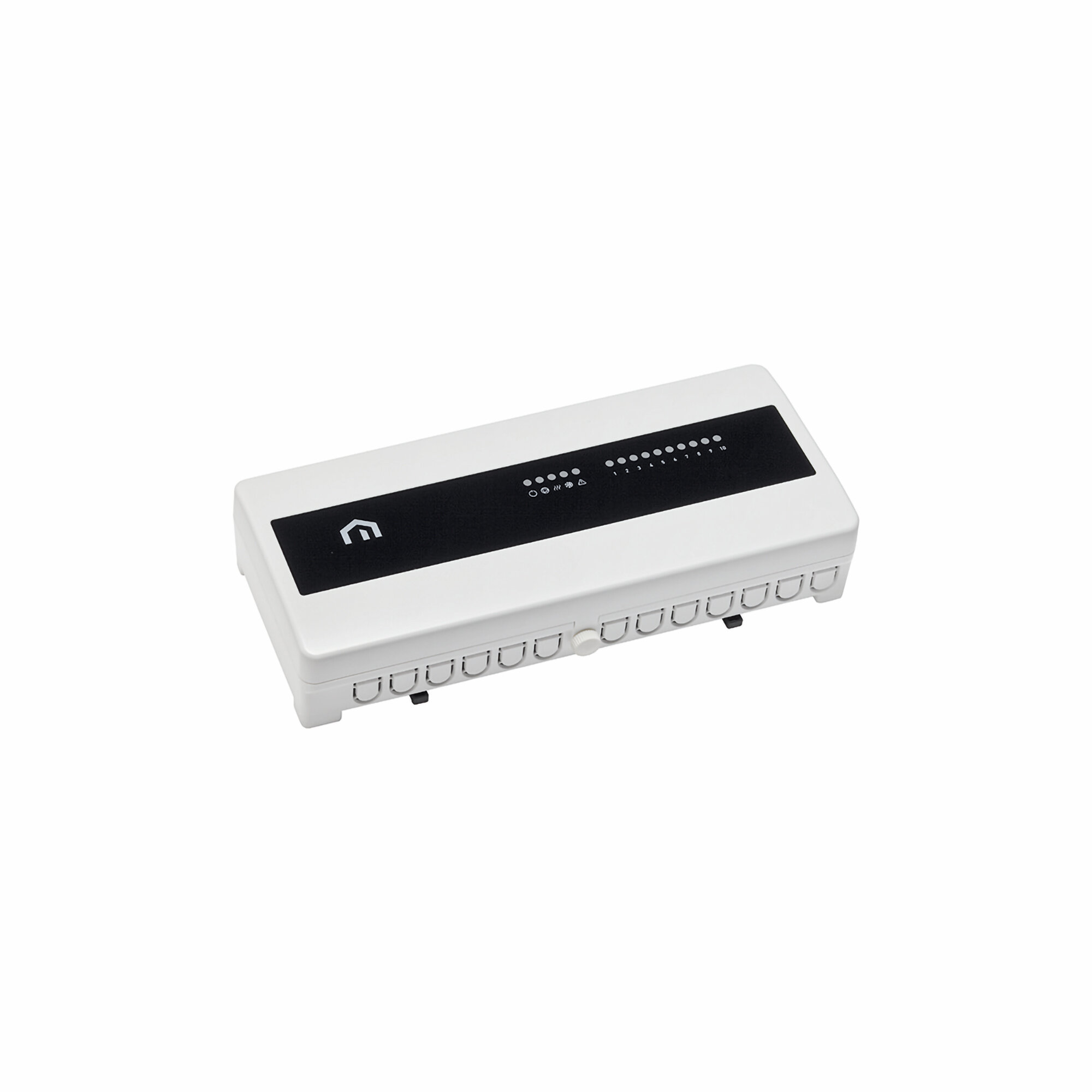

Unisenza Wiring centre, 10 zones

Download HD image 02019006

Unisenza Wiring centre, 10 zones

Wiring centre for safe and easy wiring of Unisenza room thermostats and actuators.
Up to 20 actuators per 10-zone wiring centre.

Multiple system applications are possible when used in conjunction with the Unisenza thermostat range.

Functions
- Heating
- Cooling
- Pump delay selector which allows the individual circuits to open before circulating to prevent wear and noise from the pump
- Pump exercise function that allows the pump to be exercised for 5 minutes every 24 hours to prevent pump seizures following long dormant periods
- Simple changeover from heating to cooling thanks to the external changeover input
- Input for an optional dew point and/or excess temperature sensor to protect the system from condensation when cooling or excess temperature when heating

Technical data
- Supply voltage: 230 Vac, 50/60 Hz
- Fuse: 5x20, 5 A 250 V
- Power consumption: depends on the loads connected
- Capacity of the contacts:
   - Pump output: 10 A 250 Vac (Live and neutral)
   - Generator output: 10 A 250 Vac (voltage free)
   - Change output: 10 A 250 Vac (voltage free)
- Construction: Class II
- Protection rating: IP20
- Storage temperature: -20÷60°C
- Operating temperature: 0÷40°C
- Operating humidity: 20÷90% RH non condensing

Zones
The maximum output power of each zones depends of the thermostat connecting on this zone but for easy installation we recommend a maximum of 10 actuators by zones and maximum 20 actuators for the Wiring centre.
Model Q.ty per pack. Code
Model Wiring centre 10 zones, 230V
Q.ty per pack. 1 pcs
Code 02019006
